Jacketed vessels

To enable the calculation of a jacketed vessel just follow these simple steps:

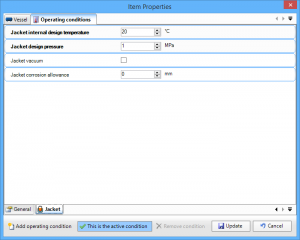

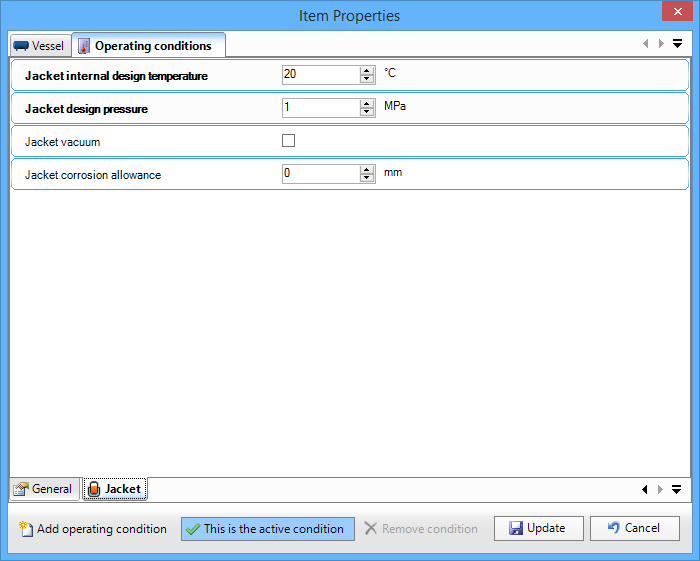

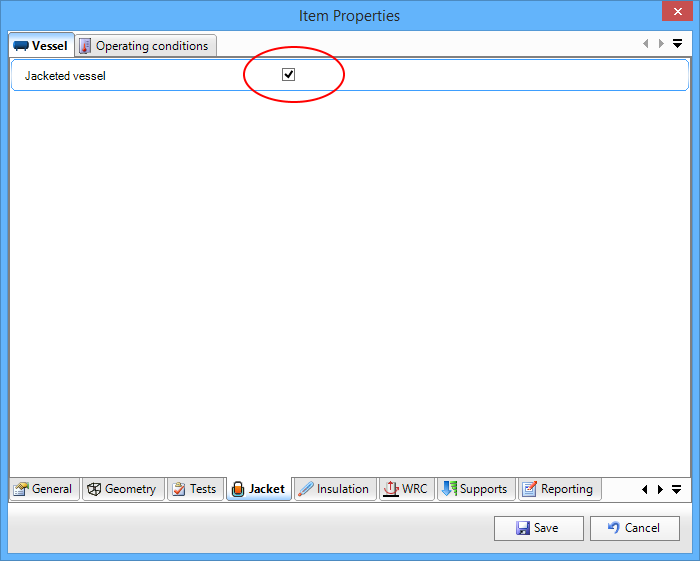

1. Enable “Jacketed vessel” option in the item properties page and define design conditions for the jacket:

jacket_01 jacket_05

2. Proceed to create first the inner vessel as usual, then add the jacket

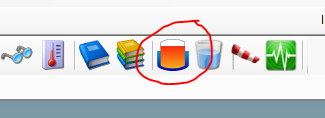

3. Select the main vessel shell, the button “Add jacket” will turn on

jacket_02

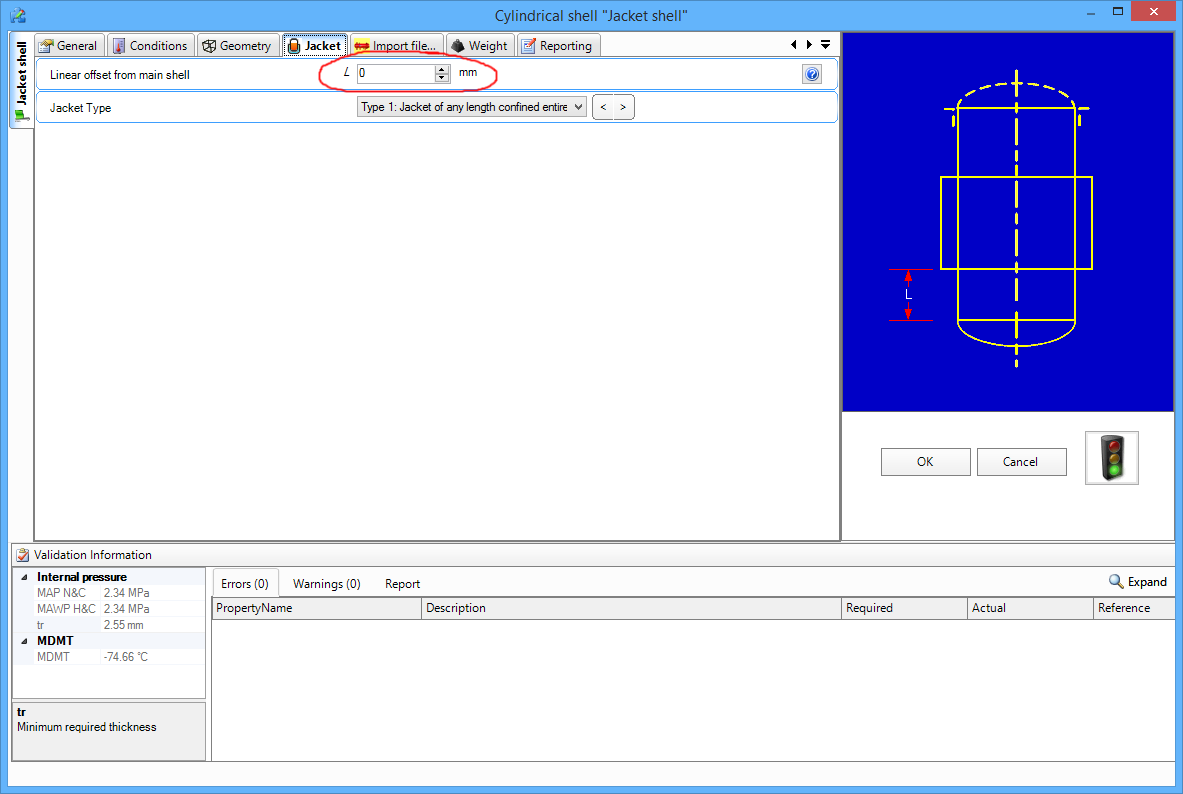

4. Clicking on  the “Add jacket” button will add the external jacket shell. Insert jacket dimensions and material and set the offset L from the main shell selected at point 3:

jacket_03jacket_03

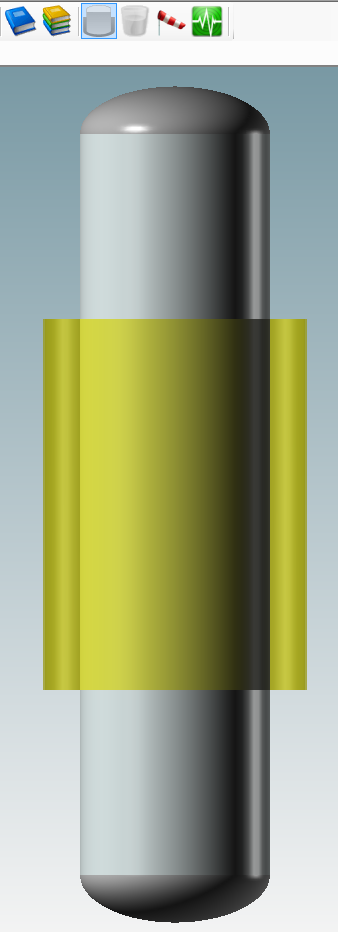

5. The jacket will be placed around the vessel main shell:

jacket_04

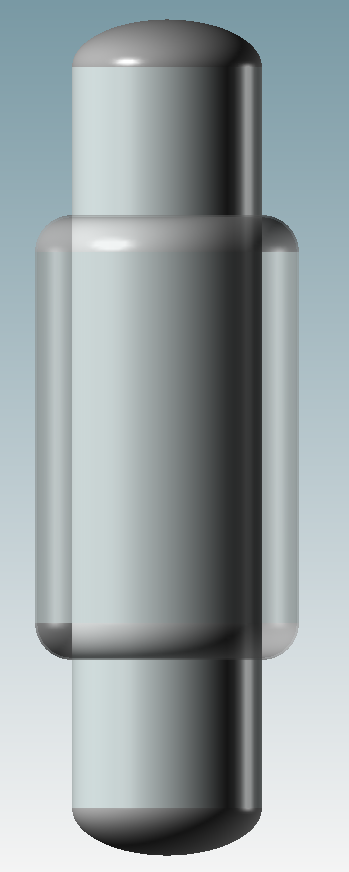

6. It’s now possible to connect other components forming the jacket like cones, heads or jacket closures:

jacket_06
